Energy saving e27 e40 led corn lamp SMD5630 also dimmable 360 degree

led corn light e27 e40

Descriptions:

1) 120w led corn light with 360 Degree Beam Angle design to make the light radiating uniformly to the ground.

2) Easy replacement, LED Street Bulb could directly replace the traditional E40 or E27 Base CFL, HPS, HM

3) 80% more energy saving compared with traditional lamps.

4) High CRI with great directionality, CRI>80.

5) Solves 4 difficulties for LED packaging, heat sinking, operational lifespan, luminous efficiency.

6) High Luminous Efficiency, more than 100-130LM/W.

7) Ip64 waterproof,dustproof,reduce maintance cost

8) Wide arrange of wattage available:12w/16w/20w/24w/30w/50w/60w/80w/100w/120w

9) Lifespan:>50000 hours



Specification:

Model No. Power Base LED Type Lumen           Size (Φ*H)mm
XT-Corn-A-12W 12W E26/E27/E39/E40 96pcs Epistar 2835 1200l±100lm E27:64*157
E40:64*164
XT-Corn-A-16W 16W E26/E27/E39/E40 112pcs Epistar 2835 1600l±100lm E27:64*167
E40:64*174
XT-Corn-A-20W 20W E26/E27/E39/E40 135pcs Epistar 2835 2000l±100lm E27:64*187
E40:64*194
XT-Corn-A-27W 27W E26/E27/E39/E40 90pcs Epistar 5630 2700l±100lm E27:93*200
E40:93*210
XT-Corn-A-36W 36W E26/E27/E39/E40 117pcs Epistar 5630 3600l±100lm E27:93*230
E40:93*240
XT-Corn-A-45W 45W E26/E27/E39/E40 144pcs Epistar 5630 4500l±100lm E27:93*261
E40:93*271
XT-Corn-A-54W 54W E26/E27/E39/E40 162pcs Epistar 5630 5400l±100lm E27:93*261
E40:93*271
XT-Corn-A-60W 60W E26/E27/E39/E40 162pcs Epistar 5630 6000l±100lm E27:93*280
E40:93*290
XT-Corn-A-80W 80W E39/E40 240pcs Epistar 5630 8000l±100lm E40:118*289
XT-Corn-A-100W 100W E39/E40 288pcs Epistar 5630 10000l±100lm E40:118*329
XT-Corn-A-120W 120W E39/E40 336pcs Epistar 5630 12000l±100lm E40:118*364
Input Voltage AC85V-265V   50-60Hz
Material Aluminum & PC cover
PC cover transparent / opaque
Light Angle 360°
Power factor ≥ 0.95
CRI ≥ 80
CCT WW(2700-3300K)  NW(3800- 4000K,4700-5300K)  CW(5700-6300K)
Working temperature  -20°C~50°C
Working Lifetime 50000 Hours
Certification CE/ROHS
Warranty 3 Years
Applications Suitable for Street/Garden/Warehouse/Park



Pictures:
CE ROHS hot selling high lumens E39 E40 SMD5630 120w led corn light

CE ROHS hot selling high lumens E39 E40 SMD5630 120w led corn light

CE ROHS hot selling high lumens E39 E40 SMD5630 120w led corn light


Energy saving high lumen led corn lamp SMD5630 dimmable 360 degree led corn light e27 e40 with 3 years warranty

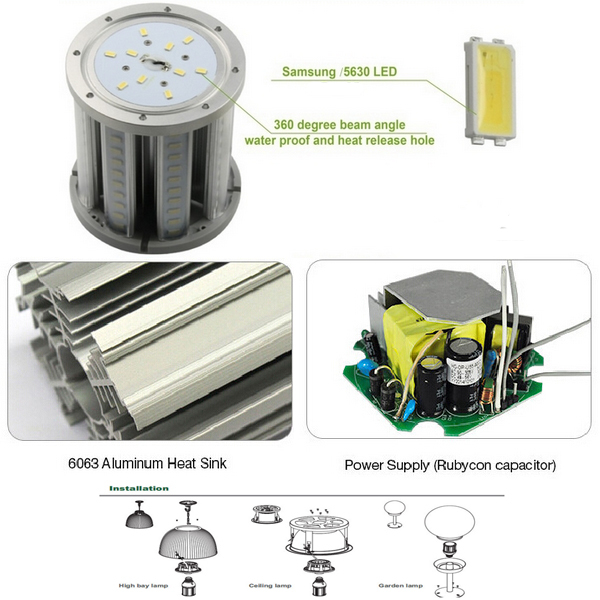

Advantages
1. LED corn light with 360 degree beam angle design to make the light radiating uniformly to the ground.
2.Easy replacement, LED Street Bulb could directly replace the traditional E40 or E27 Base CFL, HPS, HM in IP65 or IP67 fixtures.
3. 80% more energy saving compared with traditional lamps.
4. High CRI with great directionality, CRI>80.
5.Solves 4 difficulties for LED packaging, heat sinking, operational lifespan, luminous efficiency.
6. High Luminous Efficiency, more than 100-130LM/W.
7. 27W-120W version without fan.

Energy saving high lumen led corn lamp SMD5630 dimmable 360 degree led corn light e27 e40 with 3 years warranty

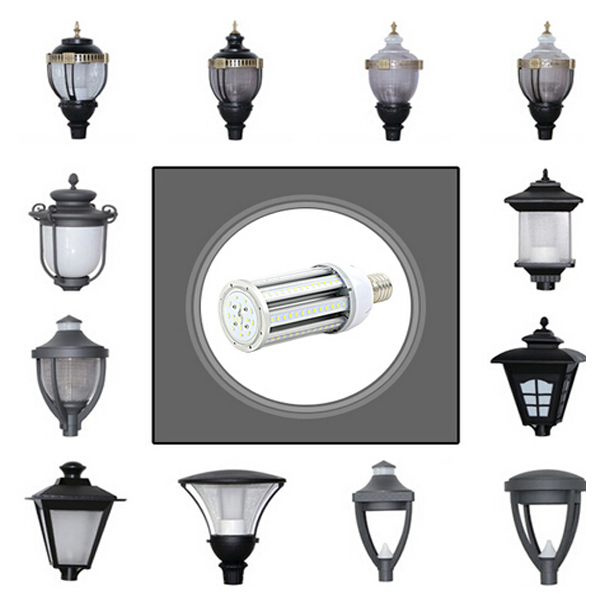

Application

1. Indoor lighting: warehouse,factory,work shop,exhibition hall and other commercial lighting,drop light,workshop,canopy lighting,high bay/low bay,garage.

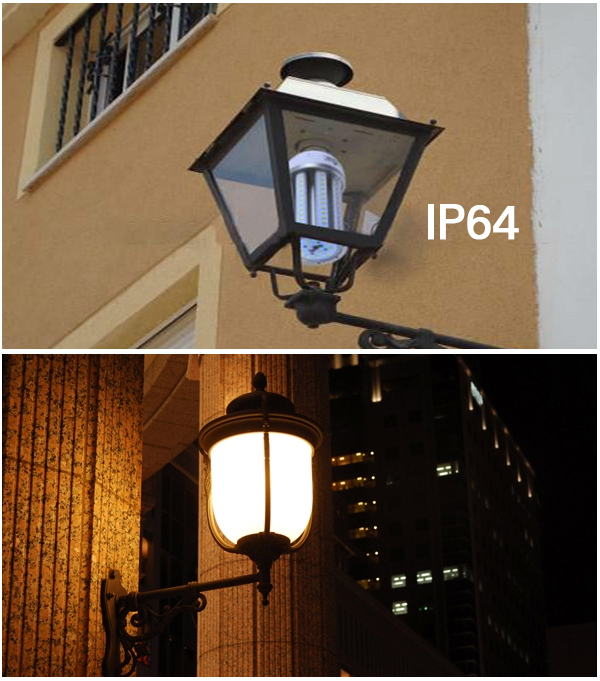

2. Outdoor Lighting:parking areas,garden,street lighting,driveway/pathway/cobra,parking lots,flood light/tunnel light ,square light,yard,wallpack,post top

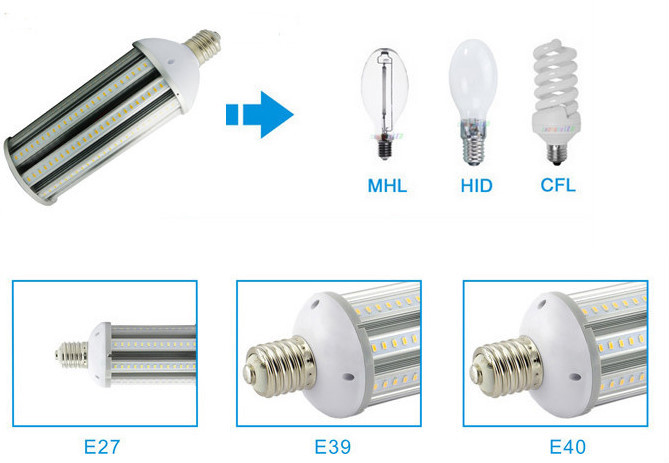

3. Replacement: HPS, CFL,TRADITION LAMP replace directly, E40/E39/E27/26 lamp also are suitable.



 Energy saving high lumen led corn lamp SMD5630 dimmable 360 degree led corn light e27 e40 with 3 years warranty

Energy saving high lumen led corn lamp SMD5630 dimmable 360 degree led corn light e27 e40 with 3 years warranty

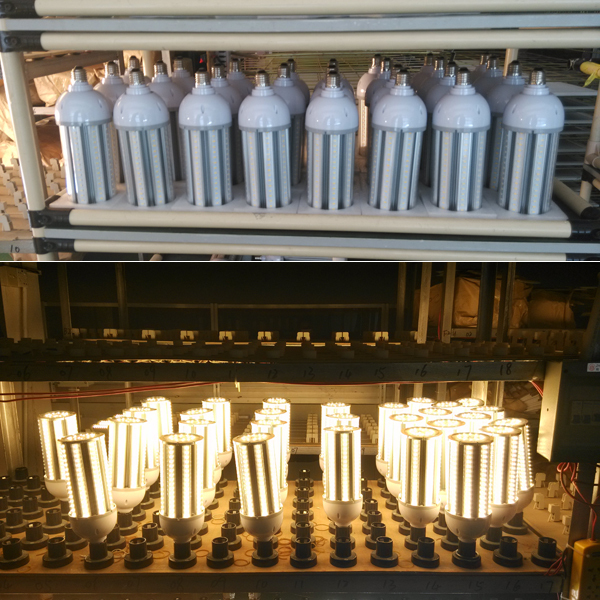

 Aging test for 48hs sure the quality

Energy saving high lumen led corn lamp SMD5630 dimmable 360 degree led corn light e27 e40 with 3 years warranty

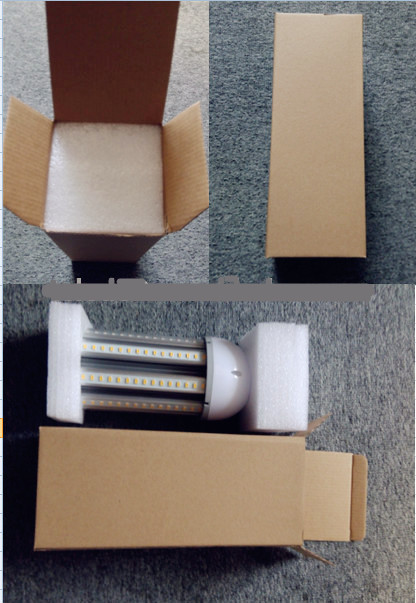

Packaging & Shipping

Energy saving high lumen led corn lamp SMD5630 dimmable 360 degree led corn light e27 e40 with 3 years warranty



Packaging & Delivery

Packaging Details: standard box or as customer''''''''''''''''s reqiurment for 120w led corn light
Delivery Detail: 7 to 12 days after payment confirmed

e40 corn lamp,Top quality corn lamp,100W WAREHOUSE CORN LAMP, corn lamp, 120W WAREHOUSE CORN LAMP, 15W E27 WAREHOUSE CORN LAMP, 30W WAREHOUSE CORN LAMP,  E27 Warehouse Lamp,  E27 Warehouse Corn Lamp, E40 Warehouse corn lamp, E40 Warehouse lamp
More details, please contact me by email or online service directly.
