You are here: Hone > Products KW-LHL-D

Super higher lumen 130lm/W and 150lm/W  UFO led high bay light

100W 150W 200W 240W optional

 Spec:

Parameter
Model  KW-A-HBL-100W, 150W, 200W, 240W
Color temperature ( K )  2700-7000K
Voltage  CE quality and Meanwell driver/ AC90V~305V 50\60Hz
Total input power ( W ) 100W 150W 200W 240W
Declared Lumen output ( Lm ) 130lm/W and 150lm/W
Power factor >0.95
Color rendering index Ra ( % ),                                   >70, >80
LED chips Philip 3030 or Bridgelux chip
Driver Built out driver
Lamp angel 60°/90°/120°
Dimensions( mm ) 300*300*167mm; 360*360*167mm; 388*388*196MM
Working environment temperature  -40~+60
Storage Tenperature  -40~+65
Life time and warranty 50,000h
Lumen maintenance in 30,000 hours >65%
Standard Relevant IEC Standard for safety and EMC
Level of waterproof IP65
Warranty 5 years
Maximum failure rate ( % )apple: 0.1

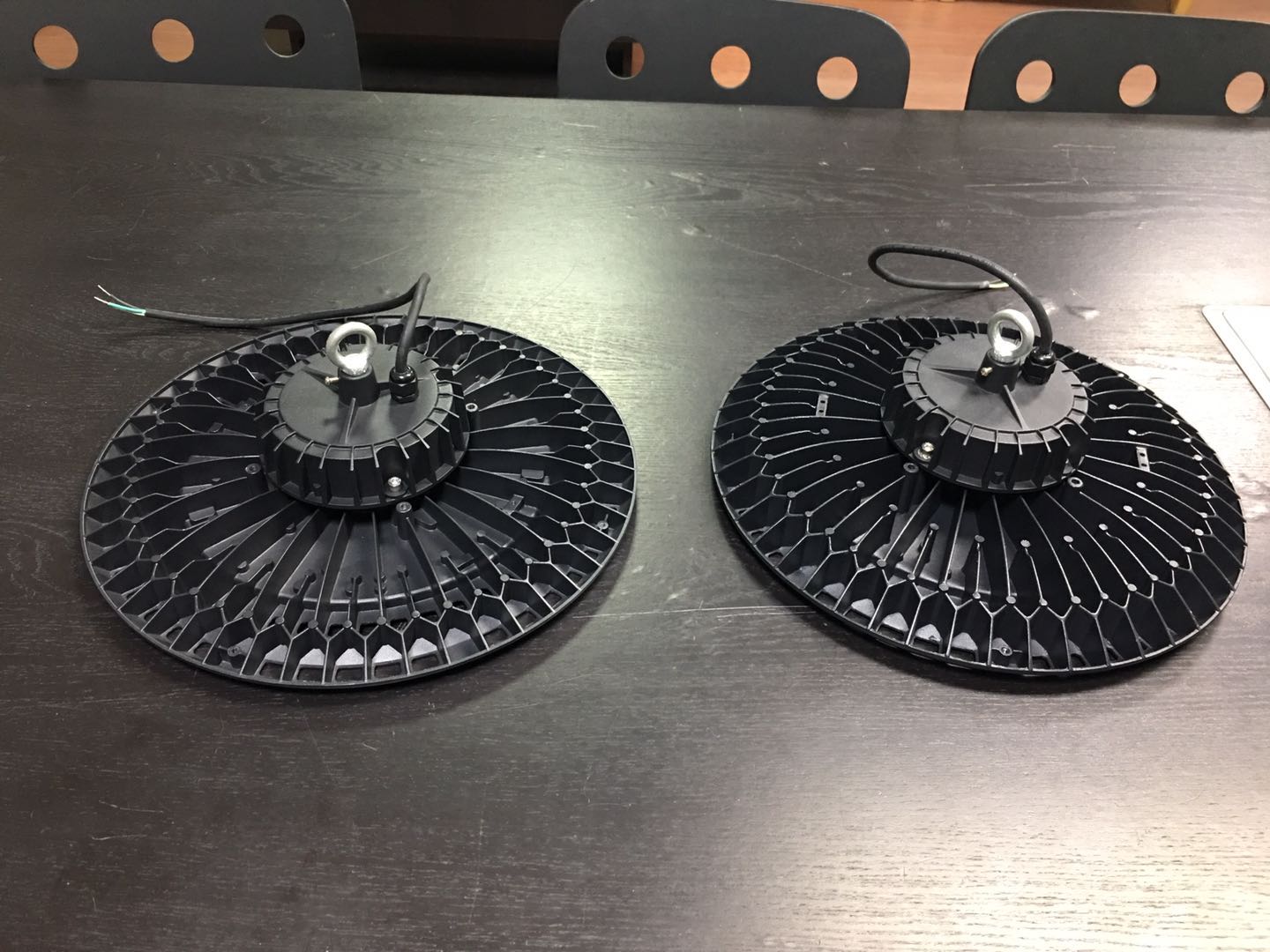

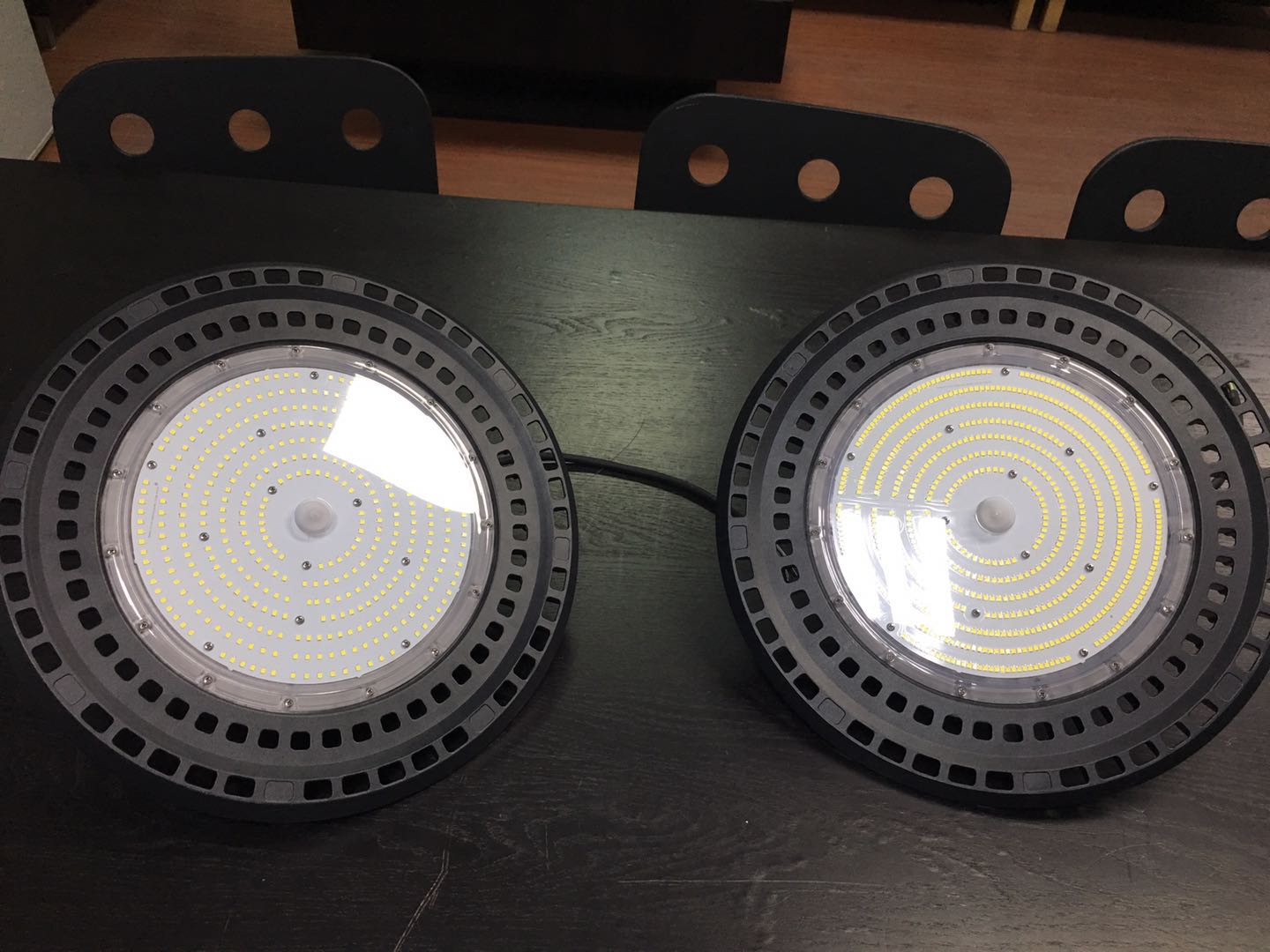

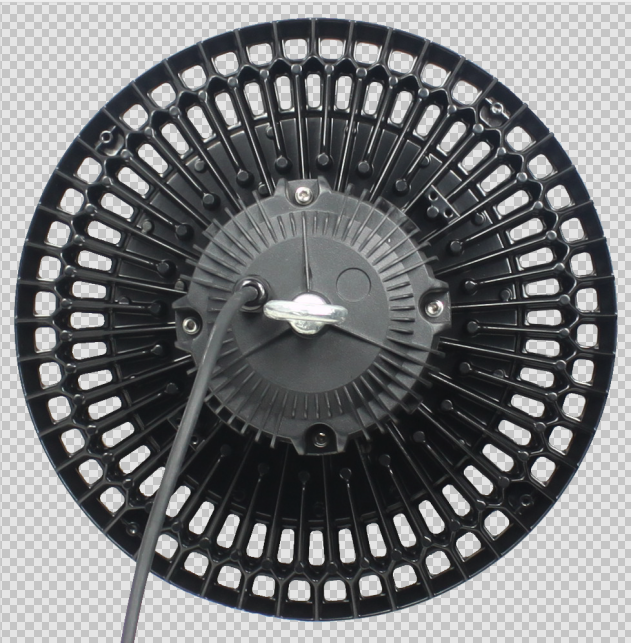

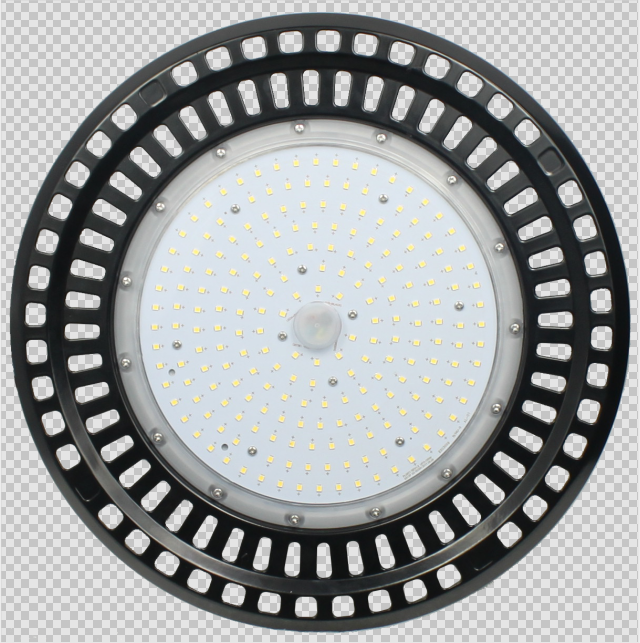

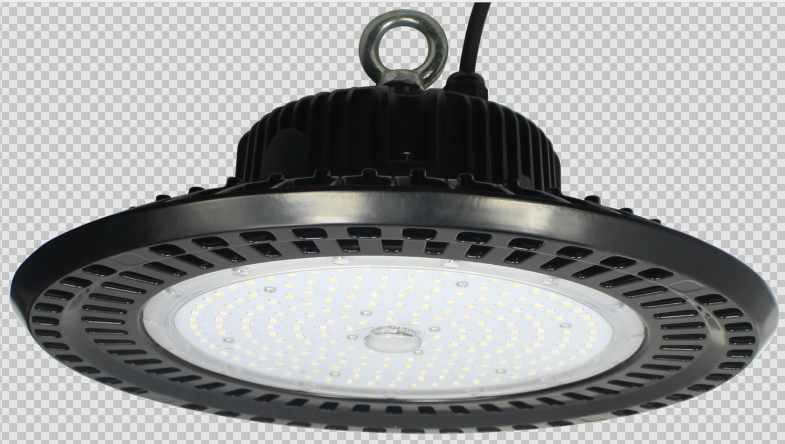

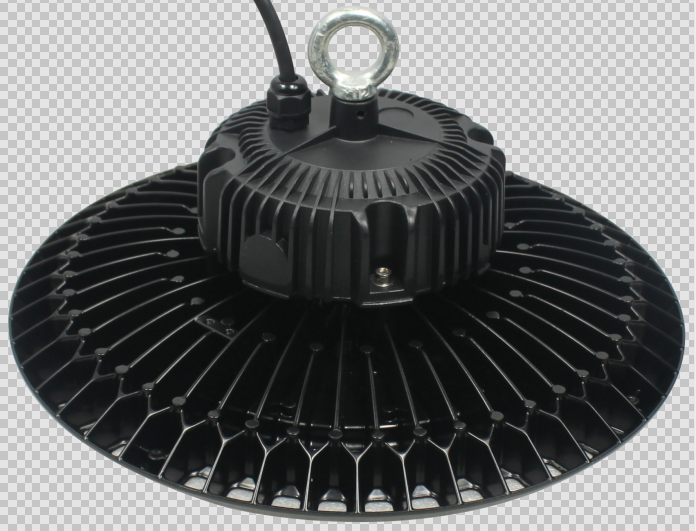

Pictures show:

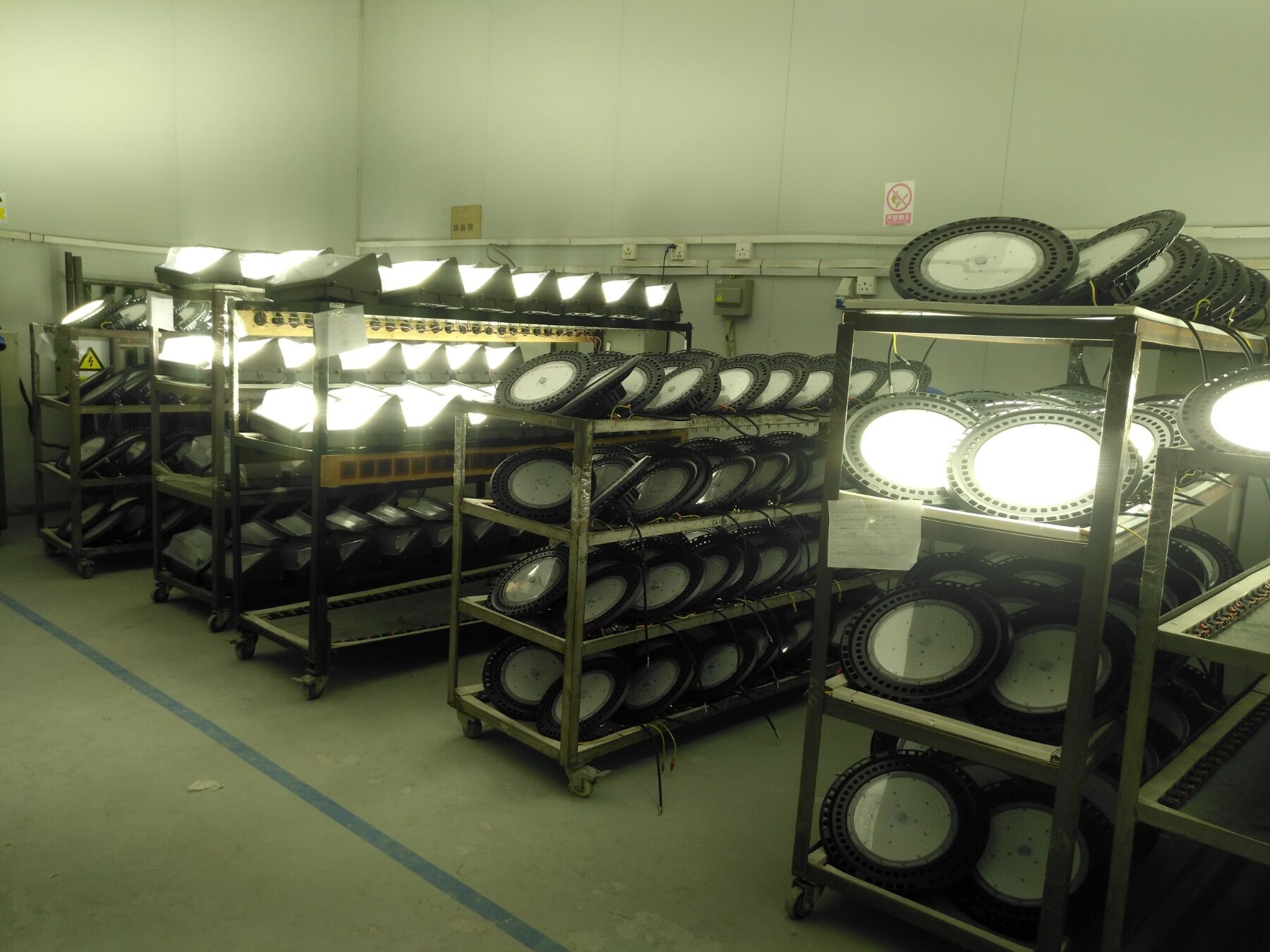

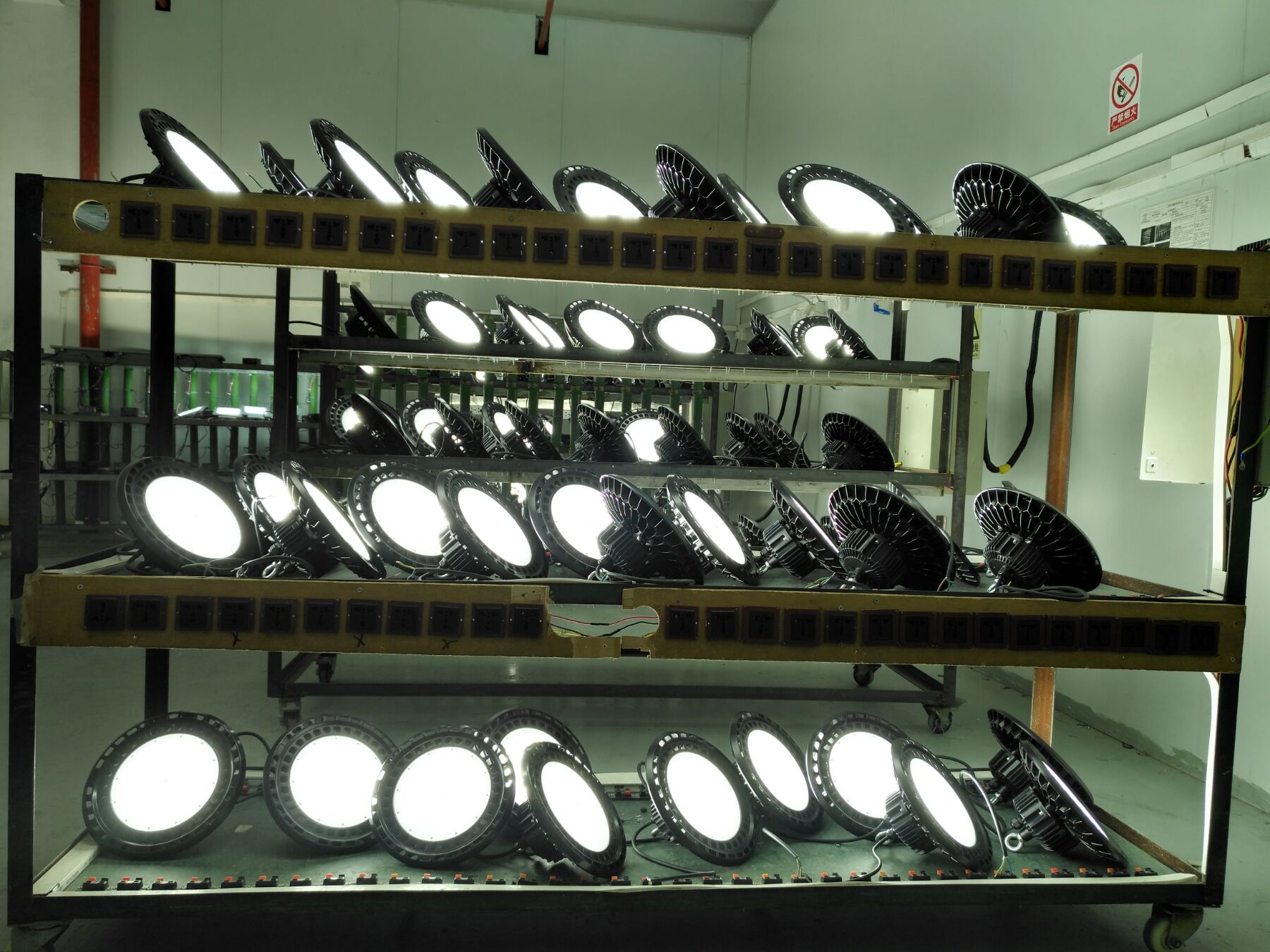

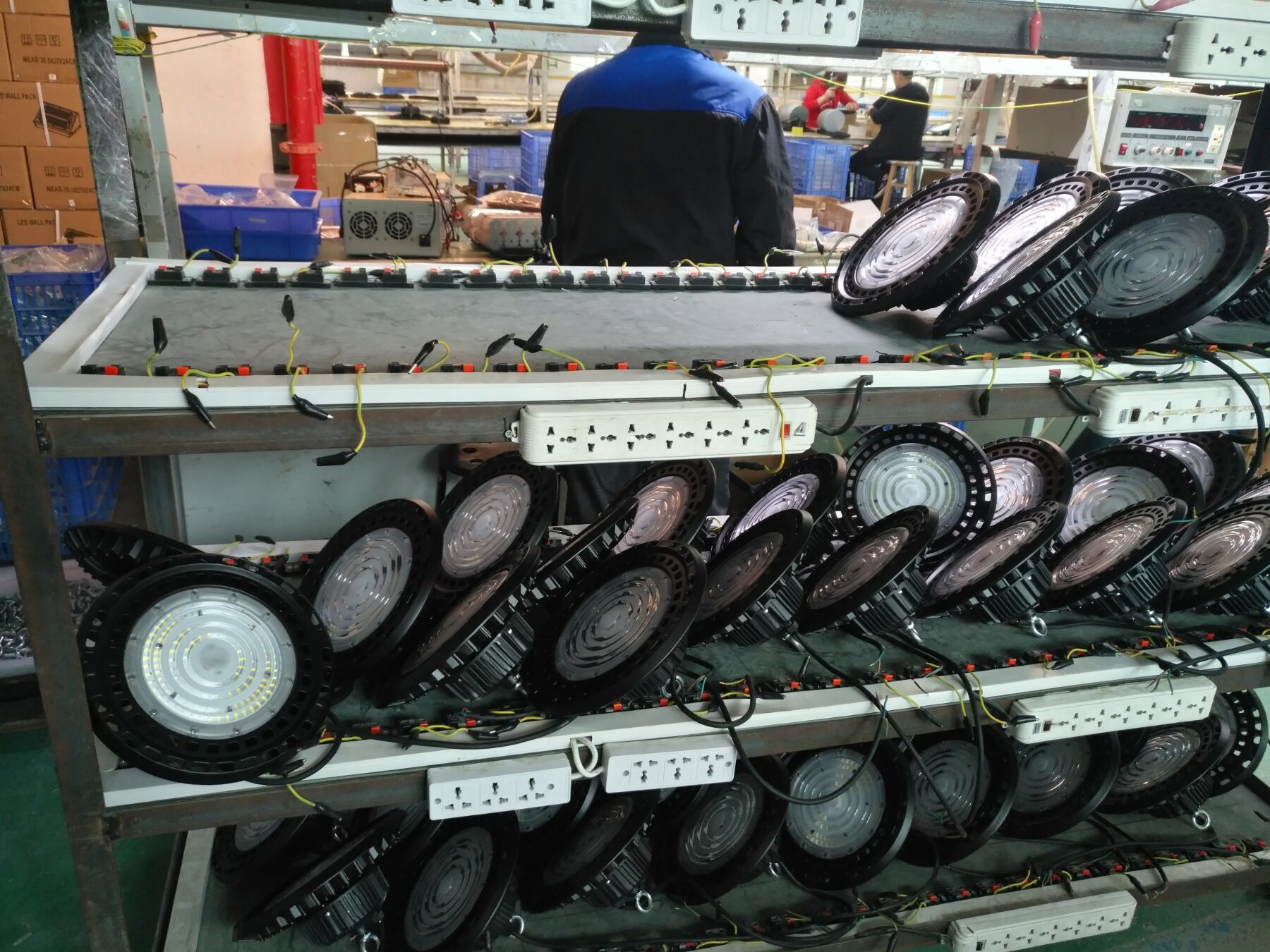

Our aging test pictures:
