You are here: Hone > Products KW-LFL-M

New 3rd time IP65 outdoor waterproof wall led flood light



Specification:

Item No.

Power

Lumen

LED

IP Rating

Voltage

Product Size

 KW-Flood-10

10W

1100LM±10%

3030

IP65

100-240VAC

159*132*64mm

 KW-Flood-20

20W

2200LM±10%

3030

IP65

100-240VAC

203*155*64mm

 KW-Flood-30

30W

3300LM±10%

3030

IP65

100-240VAC

227*167*40mm

 KW-Flood-50

50W

5500LM±10%

3030

IP65

100-240VAC

282*200*109mm

 KW-Flood-70

70W

7700LM±10%

3030

IP65

100-240VAC

282*200*109mm

 KW-Flood-100

100W

11000LM±10%

3030

IP65

100-240VAC

310*250*144mm

 KW-Flood-150

150W

16500LM±10%

3030

IP65

100-240VAC

365*274*152mm

 KW-Flood-200

200W

22000LM±10%

3030

IP65

100-240VAC

471*360*60mm

 KW-Flood-300 300W  33000LM±10%  3030  IP65  100-240VAC  491*380*80mm

More about the product:

This new 3rd LED Floodlight with grey casing , Bridgelux, Philip LED , providing enhanced quality of lumenance coupled with lower maintenance costs. Typical applications range from area lighting through to security floodlighting in Commercial, Retail and Industrial environments.

Features:

1. High power LED, >110Lm/W

2. Meanwell power supply, high efficiency and high power factor, 100-277Vac.

3. Exquisite apperance.

4. Die-casting aluminum casing and high intensity toughened glass cover

5. Waterproof, IP65,  for out door use.

6. Wide beam angle 120 degree, wide lighting area

7. High shock & vibration resistant

8. Replace of Halogen lamps and metal halide lamps

9. 5 years

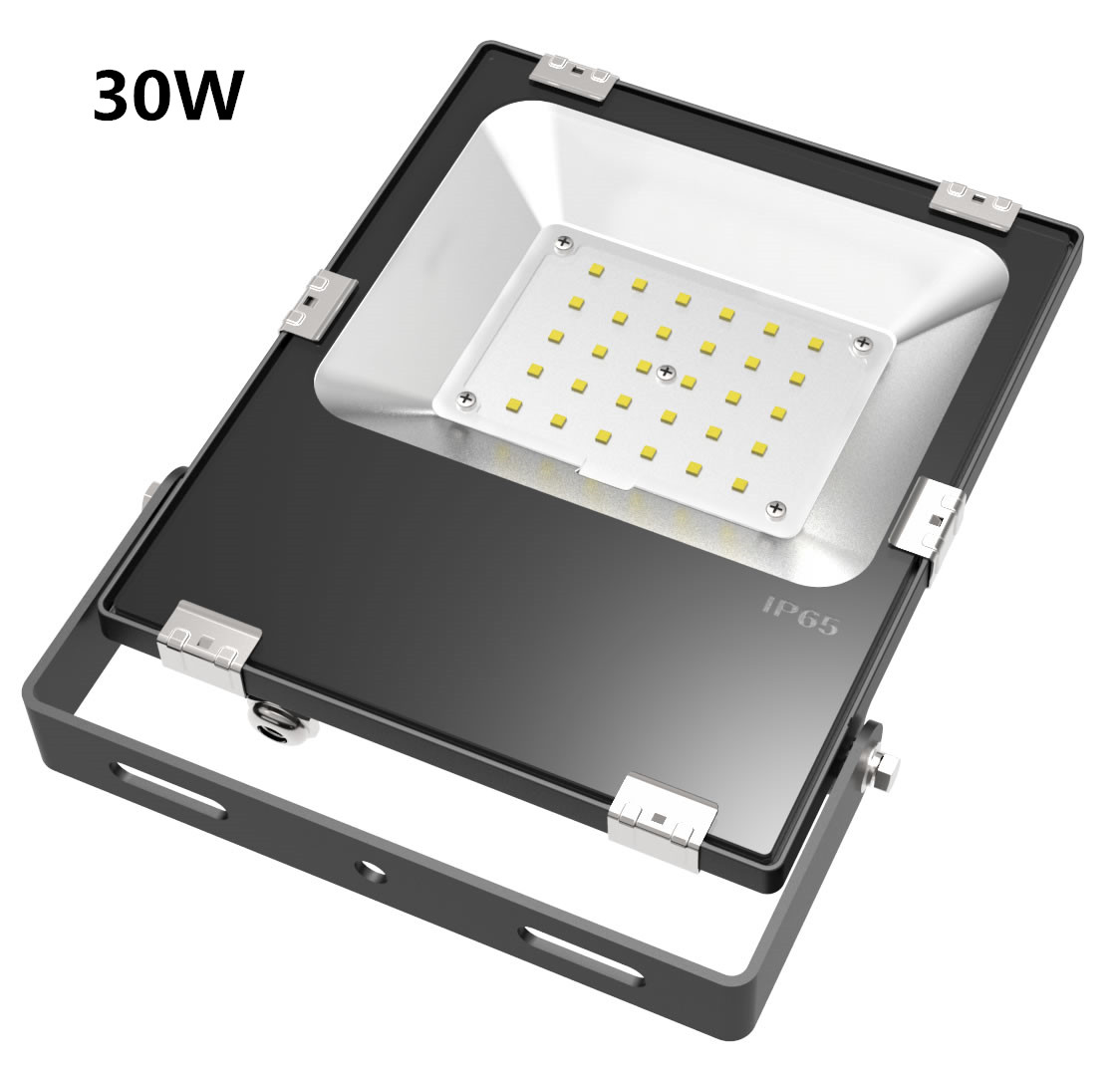

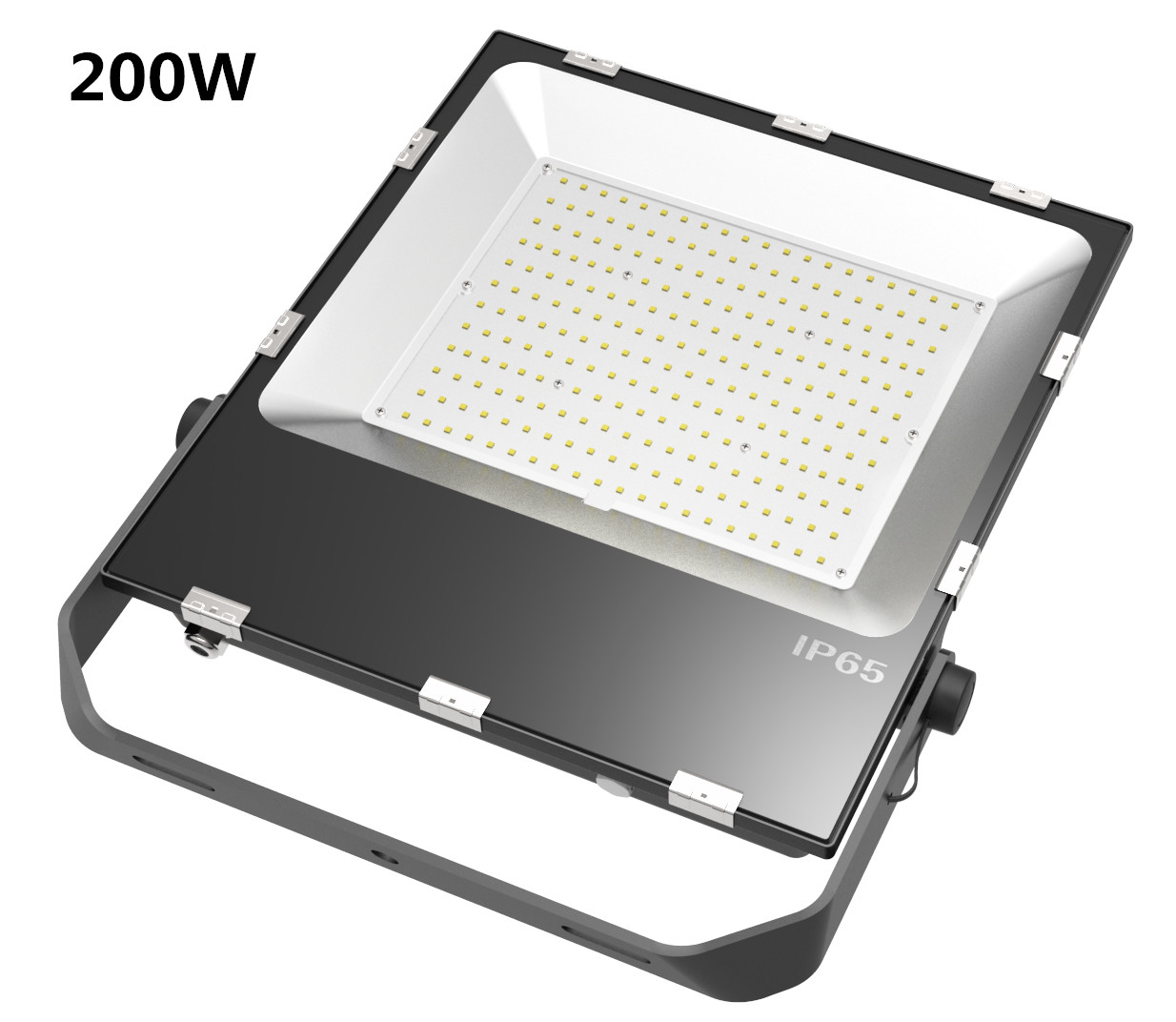

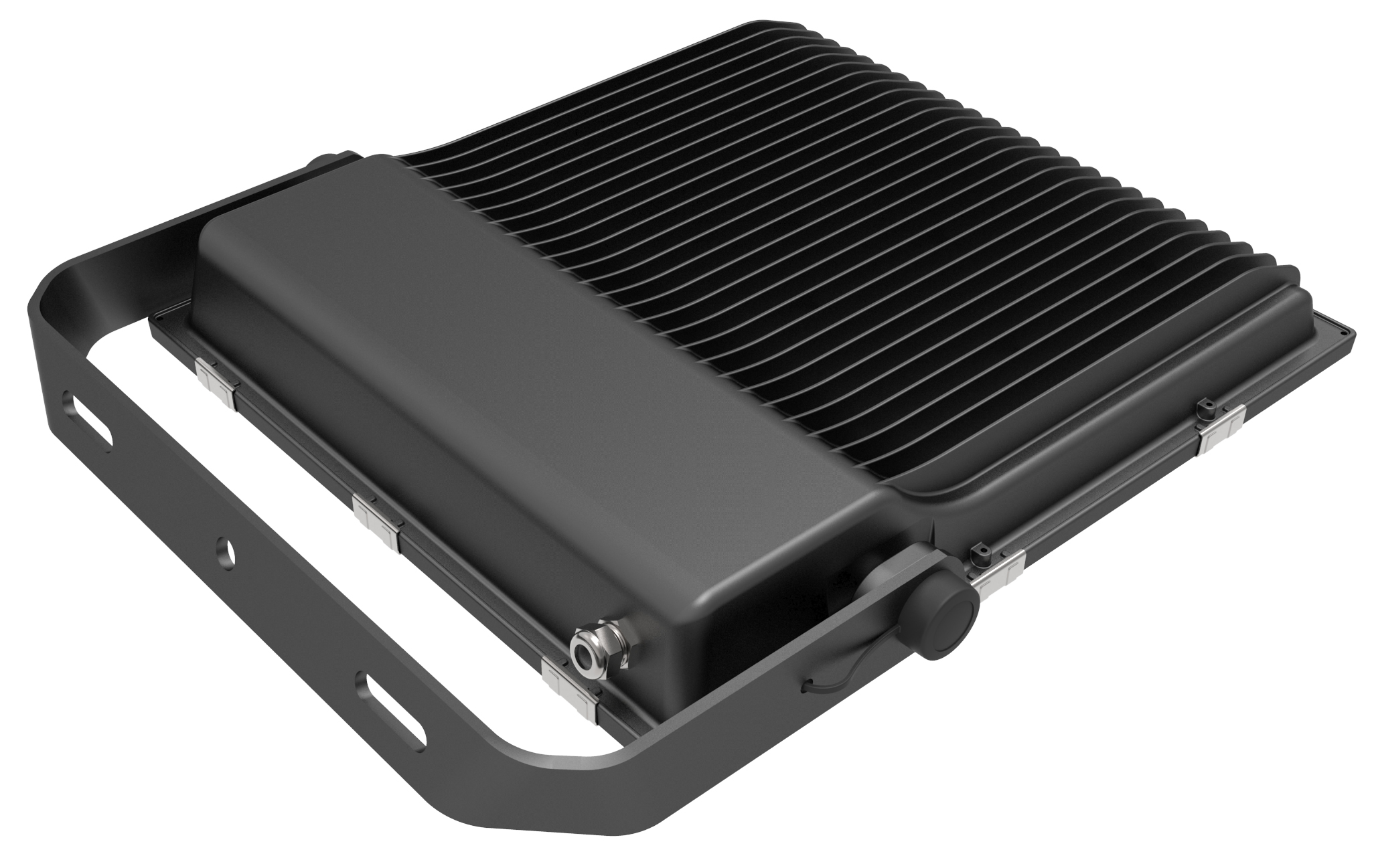

Picture Show:



Application:

Widely used in factory,gymnasium,lighting,decoration,square,golf course,airport,metro station,business area,flyover,outdoor advertising,landmark.etc...

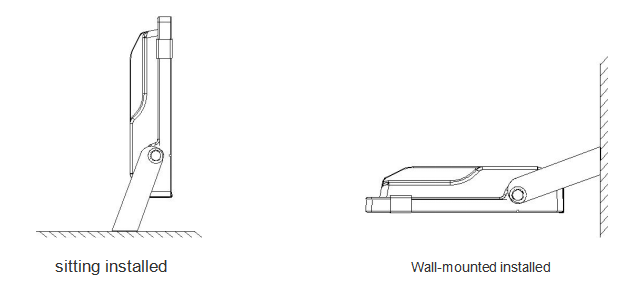

Install ways:

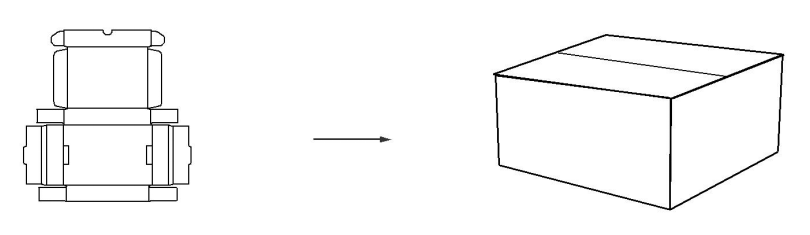

Package:
